V4A Edelstahl Seilspanner Umlenkrolle Schäkel Kettenverbinder Bolzen Karabiner
- Artikel-Nr.: PN-A-0032-HakenOse_1
Alle hier angebotenen Artikel sind aus V4A Edelstahl gefertigt und sind somit salzwasser- und säurebeständig. Bitte beachten Sie, dass bei Außenmontage auch in unseren Breitengraden V4A Edelstahl nicht unwichtig ist. Die alljährliche Salzstreuung machen V2A Edelstahl und nur verzinkten Seilspannern schwer zu schaffen. Diese können mit der Zeit brechen.

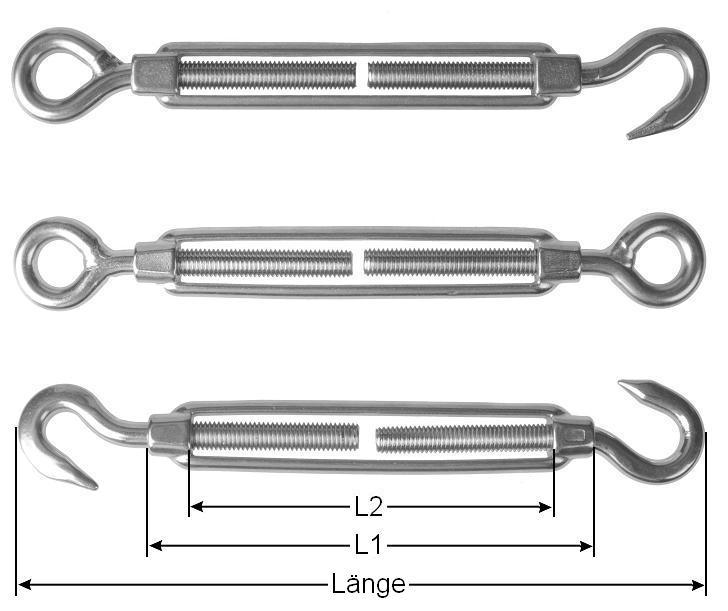

V4A Edelstahl Seilspanner
| Modell | Länge | L1 | L2 | Bruchlast |
| M5 | 120mm | 55mm | 70mm | 170kg |
| M6 | 150mm | 70mm | 90mm | 340kg |
| M8 | 190mm | 95mm | 120mm | 580kg |

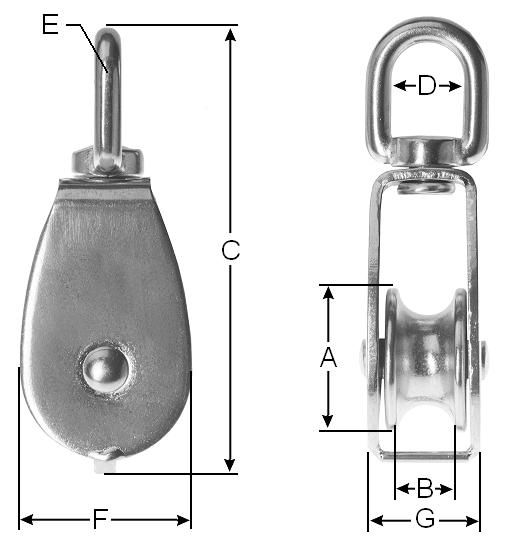

V4A Edelstahl Umlenkrolle
| Modell | B | C | D | E | F | G | Max. Last |
| 15mm | 8mm | 59mm | 11mm | 3,6mm | 19mm | 16mm | 150kg |
| 25mm | 10mm | 84mm | 15mm | 5,6mm | 30mm | 24mm | 400kg |
| 32mm | 12mm | 95mm | 15mm | 5,7mm | 36mm | 24mm | 600kg |
| 50mm | 15mm | 132mm | 20mm | 7,7mm | 54mm | 30mm | 1000kg |

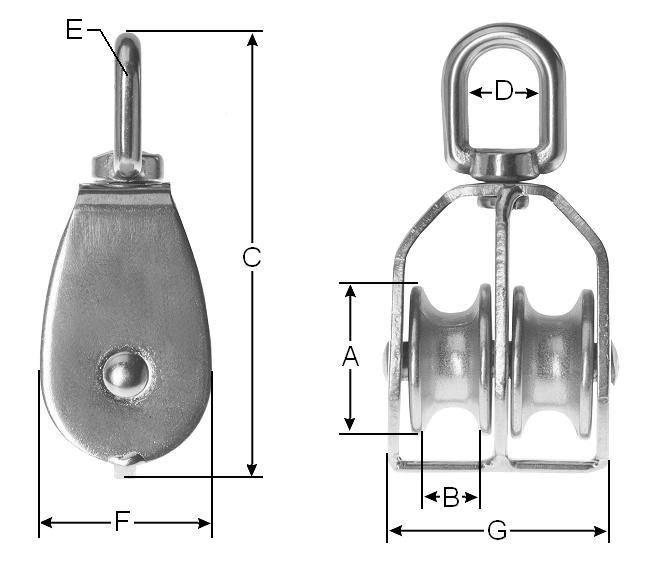

V4A Edelstahl Doppelumlenkrolle
| Modell | B | C | D | E | F | G | Max. Last |
| 25mm | 10mm | 84mm | 14mm | 6mm | 30mm | 45mm | 200kg |
| 32mm | 12mm | 94mm | 14mm | 6mm | 36mm | 45mm | 300kg |
| 50mm | 14mm | 125mm | 20mm | 8mm | 54mm | 55mm | 500kg |

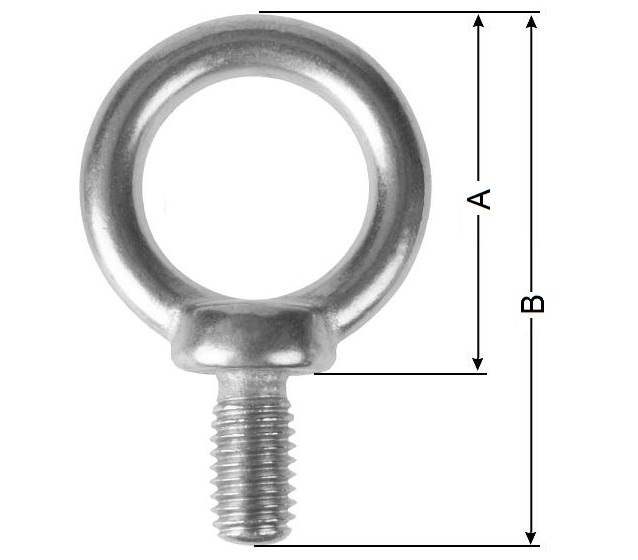

V4A Edelstahl Ringbolzen
| Modell | Ø Innen | Ø Außen | A | B |
| M6 | 16mm | 26mm | 27mm | 42mm |
| M8 | 20mm | 32mm | 34mm | 48mm |
| M10 | 25mm | 40mm | 41mm | 58mm |
| M12 | 30mm | 48mm | 52mm | 74mm |
| M16 | 35mm | 58mm | 60mm | 85mm |

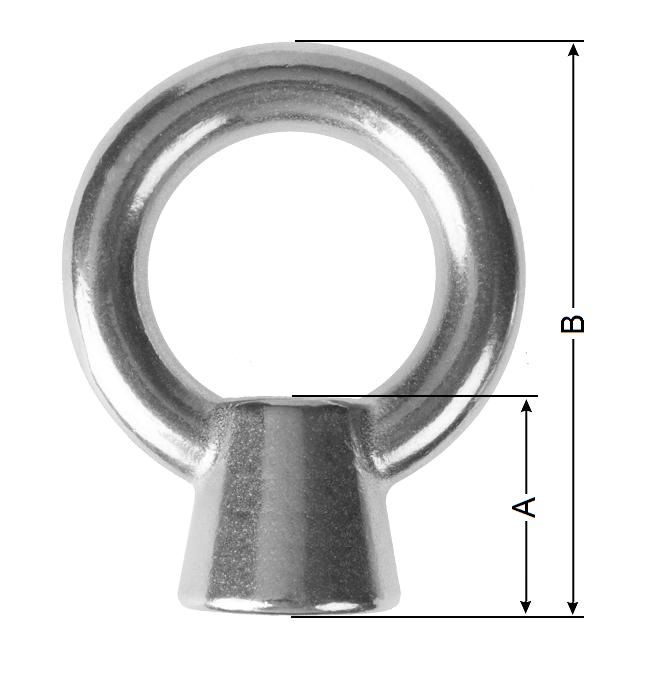

V4A Edelstahl Ringmutter
| Modell | Ø Innen | Ø Außen | A | B |
| M6 | 15mm | 25mm | 11mm | 30mm |
| M8 | 20mm | 32mm | 14mm | 39mm |
| M10 | 25mm | 40mm | 16mm | 47mm |
| M12 | 30mm | 50mm | 22mm | 60mm |
| M16 | 35mm | 58mm | 26mm | 70mm |

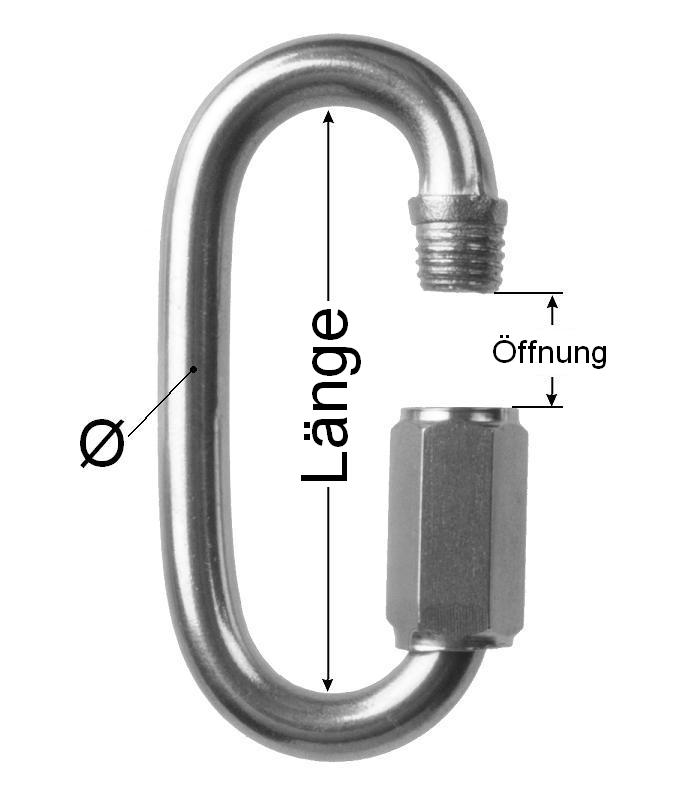

V4A Edelstahl Kettenverbinder
| Modell | Länge | Öffnung |
| Ø3mm | 28mm | 4mm |
| Ø4mm | 32mm | 5mm |
| Ø5mm | 40mm | 7mm |
| Ø6mm | 47mm | 9mm |
| Ø8mm | 58mm | 10mm |

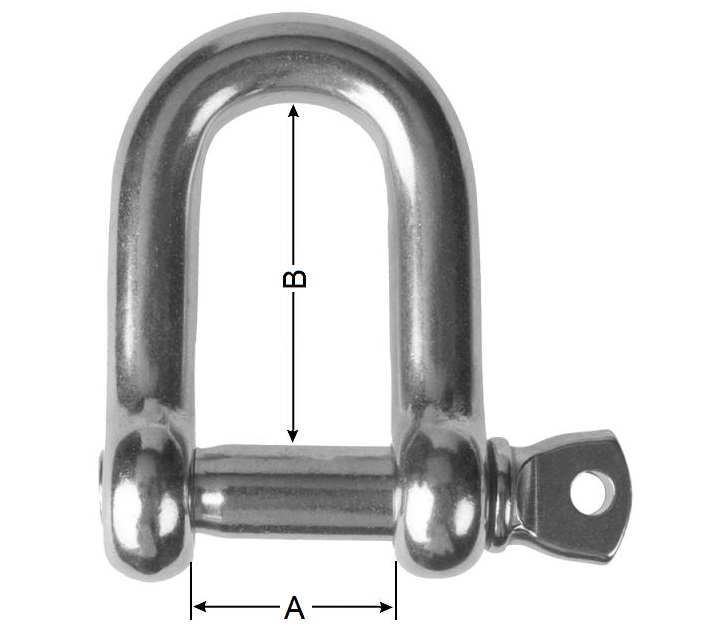

V4A Edelstahl Schäkel
| Modell | A | B |
| M4 | 9mm | 16mm |
| M5 | 10mm | 20mm |
| M6 | 12mm | 23mm |
| M8 | 16mm | 30mm |
| M10 | 20mm | 35mm |
| M12 | 24mm | 43mm |

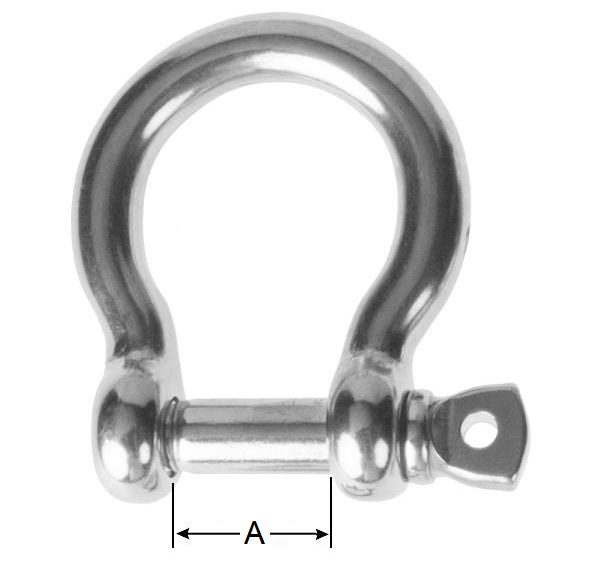

V4A Edelstahl Rundschäkel
| Modell | Ø Innen | Ø Außen | A |
| M4 | 12mm | 20mm | 8mm |
| M5 | 17mm | 26mm | 12mm |
| M6 | 20mm | 32mm | 12mm |
| M8 | 28mm | 43mm | 15mm |
| M10 | 33mm | 52mm | 21mm |
| M12 | 40mm | 64mm | 25mm |

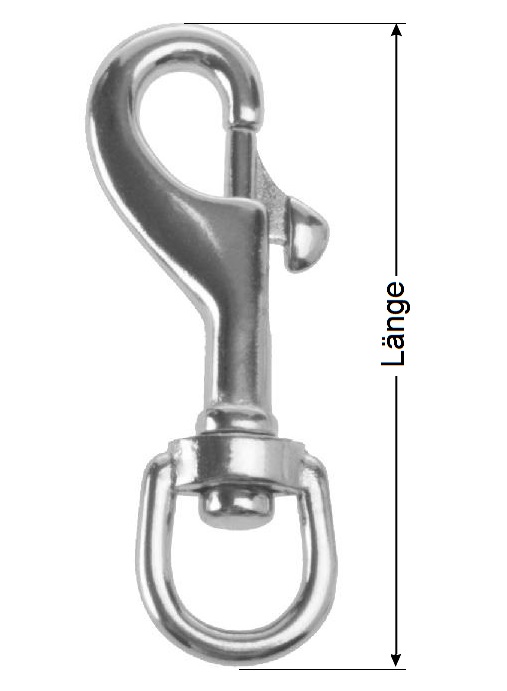

V4A Edelstahl Karabinerhaken
| Modell | Länge |
| 64mm | 64mm |
| 75mm | 75mm |
| 80mm | 80mm |
| 90mm | 90mm |

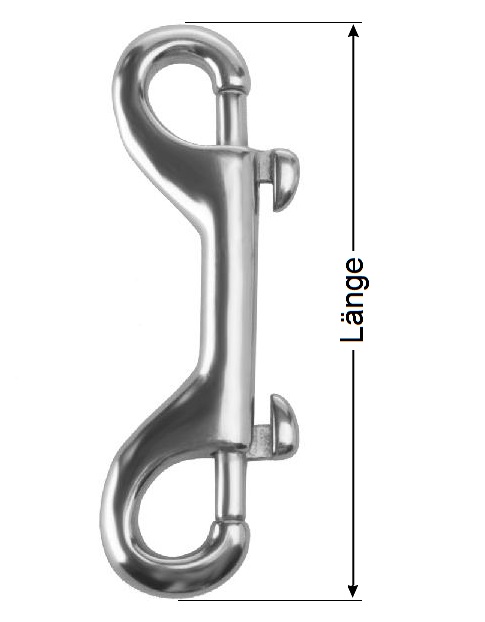

V4A Edelstahl Doppelkarabinerhaken
| Modell | Länge |
| 90mm | 90mm |
| 100mm | 100mm |
Lieferumfang:
- 1x Artikel gemäß Ihrer Auswahl
